February 1, 2026 · By Abraham Wix-Expert
Notice orange or brown streaks running down the brick above your garage door? That's not dirt you can power wash away. Those rust stains signal a corroding steel lintel: the horizontal beam supporting all that masonry above your garage opening.
Ignore it, and you're looking at cracks, sagging brickwork, and a repair bill that grows by the month.
Let's break down what Dallas homeowners actually pay to fix this problem, what drives those costs, and when you need to act.

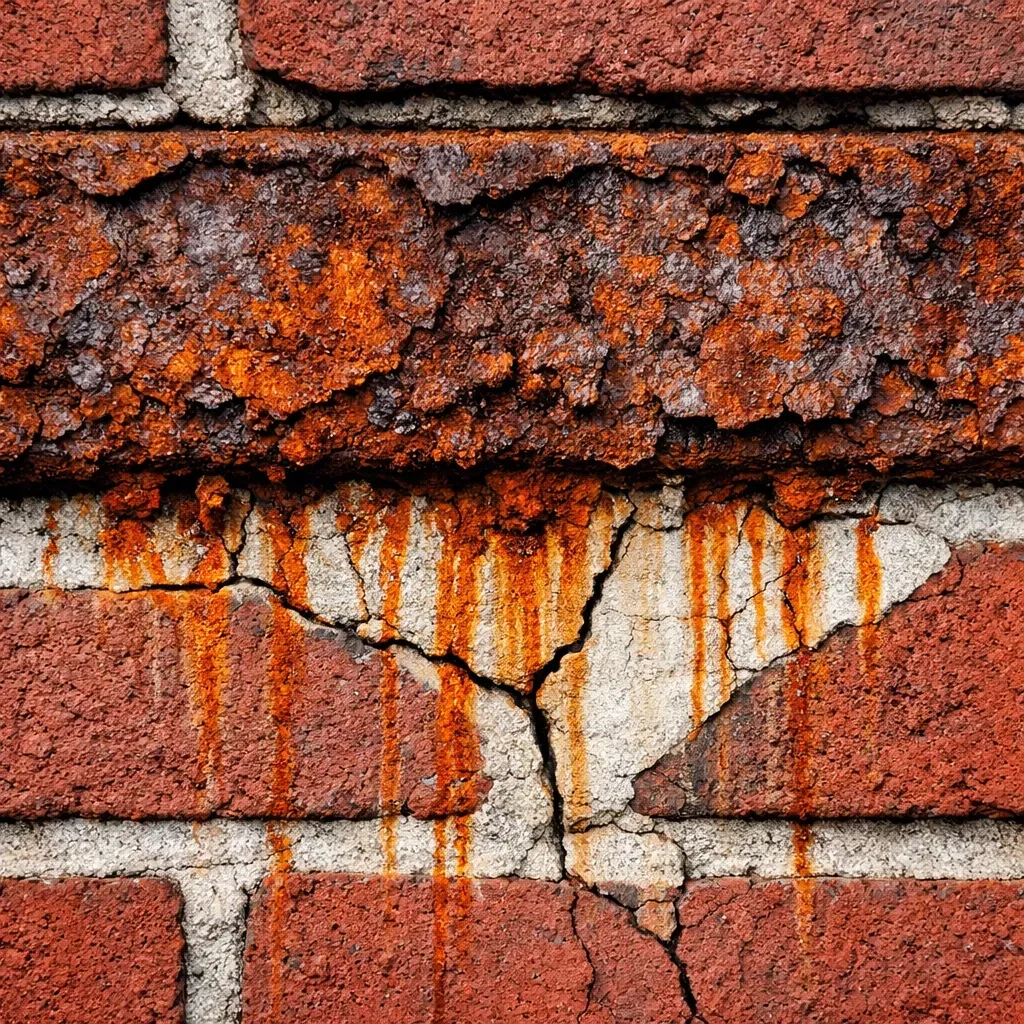

Your garage lintel is a steel beam embedded in the brickwork. When water penetrates through deteriorating mortar or missing flashing, it reaches the steel. Steel rusts. Rusted steel expands: up to ten times its original volume.
That expansion creates tremendous pressure on surrounding brick. You'll see:
Vertical cracks in the mortar joints above the garage door
Step cracks radiating outward from the door corners
Bricks that appear pushed outward or misaligned
Sagging or bowing in the brick course directly above the door
Spalling (flaking, chipping) brick faces near the lintel
Tip: Catch rust stains early, before visible cracks appear, and you'll pay significantly less for repairs.
Garage lintels rank among the most expensive lintel repairs because of their size and structural importance. Here's the breakdown:
Surface rust treatment, repointing deteriorated mortar joints, and installing proper flashing to prevent future water infiltration. This works when corrosion is superficial and structural integrity remains intact.
Adding steel support plates or angle iron to stabilize a weakening lintel without full replacement. Appropriate when corrosion is moderate but the original lintel still provides partial support.
Complete removal of the failed lintel and installation of a new steel beam. Required when severe corrosion has compromised structural capacity.
Most Dallas homeowners spend around $1,200 for a standard garage lintel repair. That typically includes stabilizing the existing lintel, addressing associated masonry damage, and installing flashing.
No two garage lintel repairs cost exactly the same. These factors determine your final bill:
Minor surface rust costs $400–$600 to address. Severe corrosion requiring replacement pushes costs to $2,000–$4,000. The difference? Months or years of delayed action.

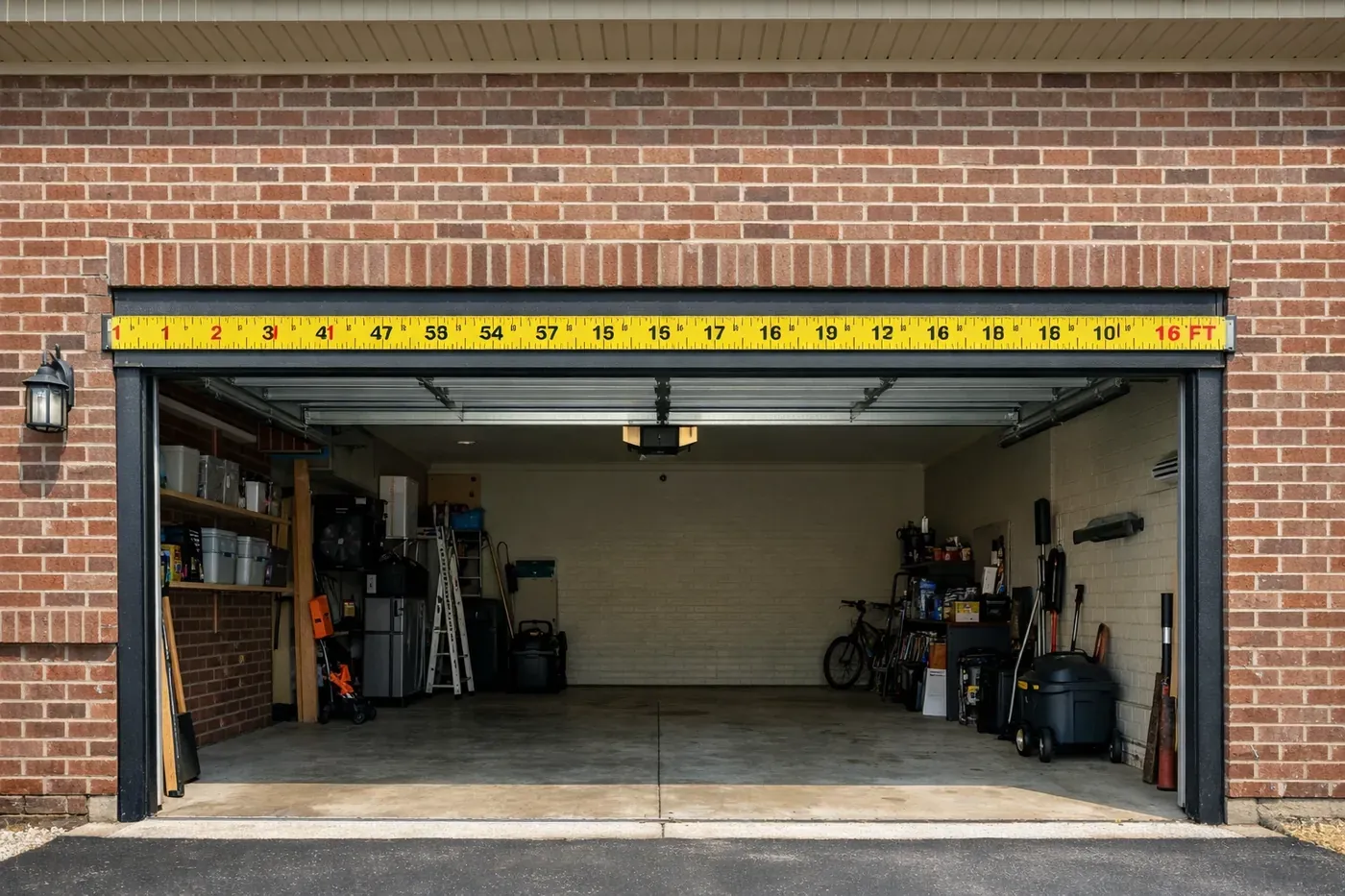

Single-car garage doors (8–9 feet wide) require smaller lintels than double-car doors (16–18 feet). Steel lintels run $30–$60 per linear foot for materials alone. A 16-foot lintel costs twice what an 8-foot lintel costs.
Ground-floor garage repairs cost less than second-story repairs requiring scaffolding or lift equipment. Difficult access points add $200–$500 to labor costs.
Corroded lintels rarely damage just themselves. Expect to pay for:
Repointing cracked mortar joints: $5–$15 per square foot
Replacing spalled or cracked bricks: $10–$30 per brick
Rebuilding displaced brick courses: $25–$40 per square foot
A severely compromised lintel might require rebuilding 10–20 square feet of surrounding brickwork.
Standard steel lintels ($30–$60/linear foot) represent the baseline. Stainless steel or galvanized options cost 30–50% more but offer superior corrosion resistance in areas with persistent moisture issues.
Professional brick masons in the Dallas area charge $45–$70 per hour depending on experience and company overhead. Lintel repairs typically require 6–12 hours of skilled labor for straightforward projects.
Caution: Unlicensed contractors quoting significantly below market rates often lack proper insurance, use inferior materials, or skip critical steps like flashing installation.

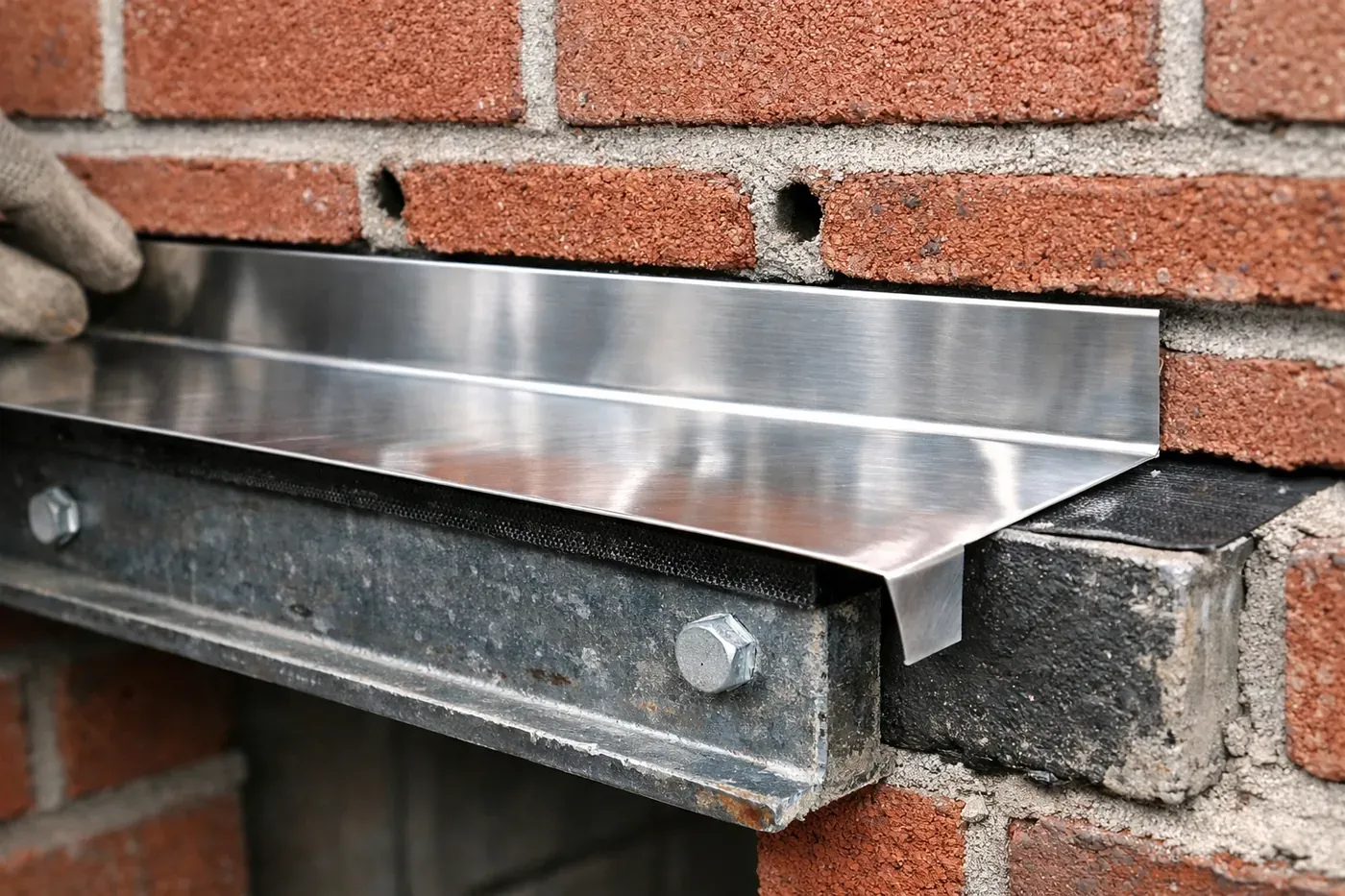

Proper lintel flashing: a thin metal or membrane barrier that redirects water away from the steel: represents the difference between a 40-year repair and a 5-year Band-Aid.
Quality flashing installation adds $200–$400 to repair costs. Skipping it guarantees water will reach the steel again. You'll face the same rust stains within 3–7 years.
Install flashing correctly the first time. Insist contractors:
Extend flashing at least 4 inches beyond each end of the lintel
Use 40-mil PVC, copper, or stainless steel flashing material
Install weep holes every 24 inches along the course above the flashing
Seal all joints and terminations properly
Homeowners who postpone lintel repairs face escalating problems:
Year 1: Rust stains appear. Minor repair costs: $500–$800.
Year 2-3: Hairline cracks develop. Moderate repair costs: $1,200–$1,800.
Year 4-5: Significant cracking, visible sagging. Major repair costs: $2,500–$4,000.
Year 6+: Structural compromise, potential safety hazard. Emergency repair costs: $4,000–$8,000+.
That initial $600 repair becomes a $5,000 crisis. Water damage doesn't pause while you debate whether to call a contractor.
Full lintel replacement involves temporarily supporting the brick above the garage, removing the deteriorated lintel, installing new steel, rebuilding masonry, and finishing. It's invasive, time-consuming, and expensive.
Modern stabilization techniques like LintleLOCK™ correct and lock rotating or sagging lintels without full removal. These methods:
Cost 30–50% less than complete replacement
Complete in 1–2 days instead of 3–5 days
Minimize disruption to your home and landscape
Come with lifetime structural warranties
Tip: Ask contractors whether stabilization works for your specific situation before defaulting to full replacement.

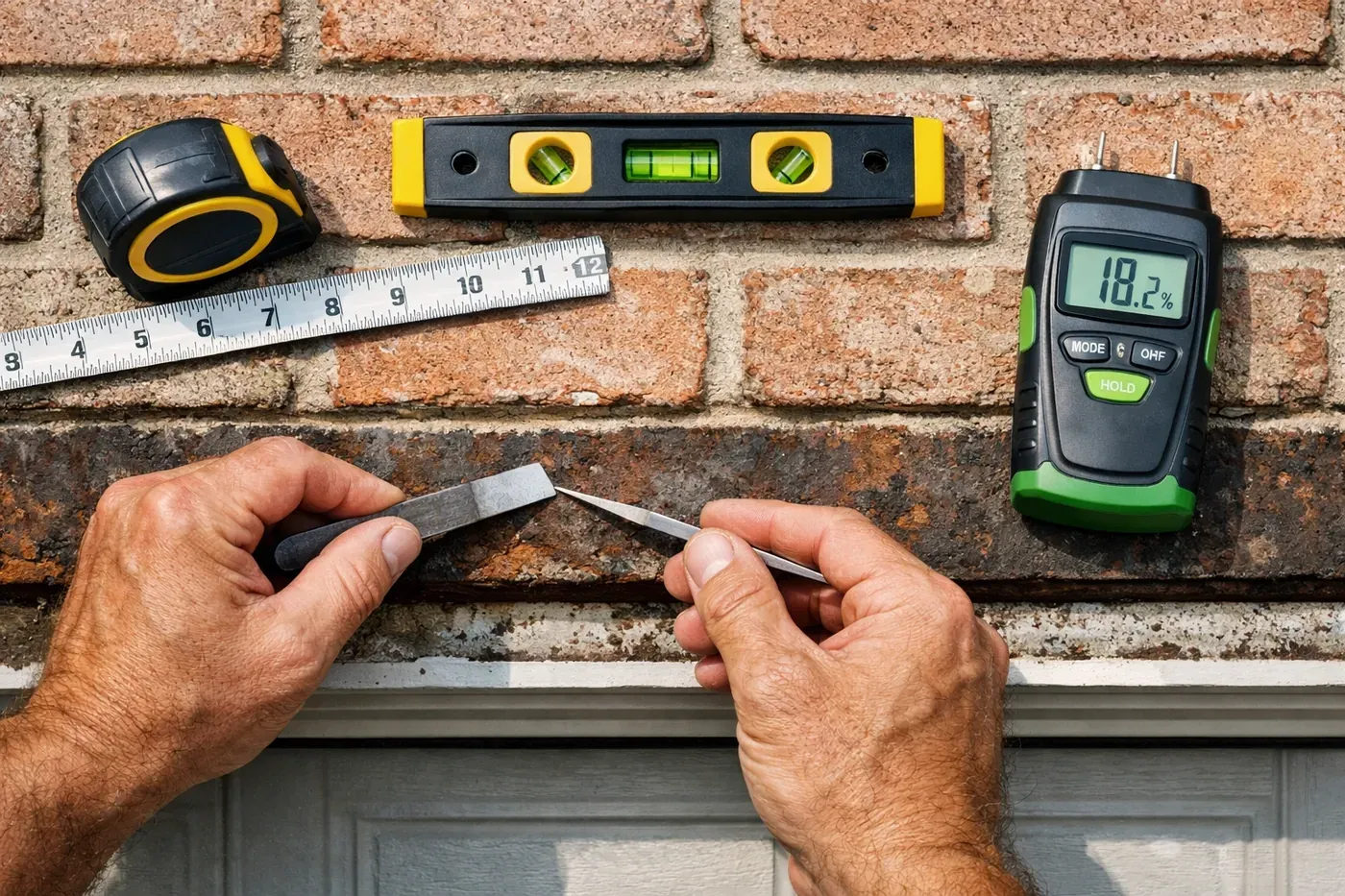

Reputable masonry contractors provide detailed inspections before quoting repairs. Expect them to:
Measure the garage opening and assess load conditions
Document visible damage with photos
Test mortar joint integrity around the lintel area
Check for water intrusion sources (damaged flashing, settled gutters, inadequate drainage)
Evaluate structural movement or displacement
Provide itemized cost estimates breaking down materials, labor, and timeline
Free inspections from established companies signal confidence in their diagnostic process. Be wary of contractors who quote prices over the phone without seeing the damage.
Not all repair quotes reflect honest assessments. Request additional opinions if contractors:
Recommend full replacement without explaining why stabilization won't work
Cannot provide references from similar garage lintel repairs
Refuse to detail their flashing installation method
Quote prices 40%+ above or below typical ranges without clear justification
Push immediate decisions without allowing time for competitive bids
Quality masonry contractors welcome informed questions and provide clear, technical answers.
Standard homeowners insurance rarely covers lintel repairs resulting from normal deterioration and deferred maintenance. Policies may cover lintel damage if:
A sudden event (vehicle impact, storm damage, fire) caused the failure
Your policy includes specific masonry coverage riders
Water intrusion from a covered peril (burst pipe, roof damage) accelerated corrosion
Review your policy or consult your agent before assuming coverage. Most garage lintel repairs fall under homeowner responsibility.
North Texas weather patterns create unique challenges for garage lintels:
Temperature fluctuations: Our 40°F winter nights to 100°F summer days cause expansion and contraction that stresses mortar joints. Compromised joints allow water penetration.
Severe weather events: Heavy rains and occasional hail damage brick and mortar, creating pathways for water to reach lintels.
Clay soil movement: Expansive clay soils shift foundations, which can stress brick above garage openings and accelerate joint deterioration.
Dallas homeowners should inspect garage areas annually, especially after severe weather or noticeable foundation movement.
See rust stains above your garage? Here's what to do:
Document the damage with dated photos from multiple angles
Contact licensed masonry contractors for professional assessments: get 2-3 opinions
Request itemized quotes that specify materials, methods, warranties, and timelines
Verify credentials: active licenses, insurance certificates, recent references
Ask about warranty coverage: reputable contractors back structural repairs with multi-year or lifetime guarantees
Schedule repairs promptly: waiting six months to save a few hundred dollars often costs thousands more
For professional garage lintel assessment in the Dallas area, contact our team for a detailed inspection and transparent cost estimate.
Rust stains don't fix themselves. The steel behind that brick is corroding whether you acknowledge it or not. Address it now on your terms, or address it later when the damage dictates emergency repairs at emergency prices.
Your garage lintel supports thousands of pounds of masonry. Treat it accordingly.
